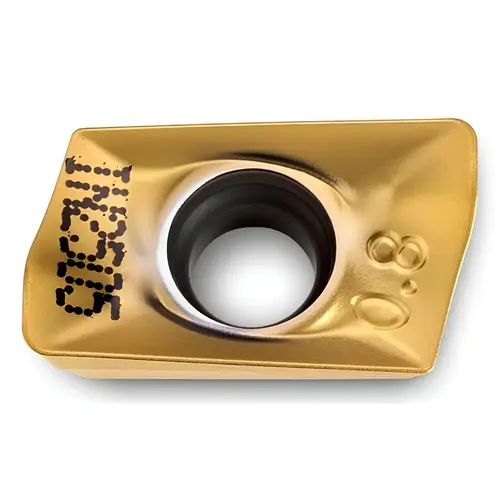

Milling Insert: BOMT130408R IN2504 IN2504, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ingersoll Cutting Tools 6154077-XCP10 Milling Insert: BOMT130408R IN2504 IN2504, Solid Carbide - pack of 10

Item #: 6154077-XCP10 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$431.29

/package
SAVE UP TO 43.13
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 22 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Cast Iron

ANSI Code

BOMT130408R IN2504

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

BOMT

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0310

Length (Decimal Inch - 4 Decimals)

0.5580

Manufacturers Catalog Number

6154077

Material Grade

Micrograin

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.1900

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3200

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4900

Multi-use Tool

Yes

Rake

Positive

Length of Cut (mm)

12.4500

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3200

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Chip Breaker

None

Insert Style

BOMT

Insert Size Code

130408

Included Angle Degree

82

Manufacturer Grade

IN2504

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Single or Double Sided Insert

Single

Cutter Series Compatibility

12_1R

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Iso Code

BOMT130408R IN2504

Product Overview
Milling Insert: BOMT130408R IN2504 IN2504, Solid Carbide TiAlN & TiN Coated, 0.1900 " Thick, 0.3200" Wide
