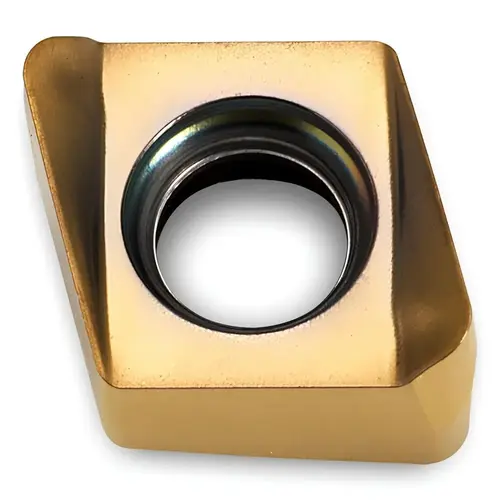

Ingersoll Cutting Tools 6164296 Milling Insert: IN2505, Carbide TiAlN

Item #: 6164296 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
In Stock

$39.46

/each
SAVE UP TO 3.95
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 62 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Steel

ANSI Code

MNHU060308R-HW IN2505

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

MNHU

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0310

Length (Decimal Inch - 4 Decimals)

0.2600

Manufacturers Catalog Number

6164296

Material Grade

Micrograin

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1840

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2600

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2400

Multi-use Tool

No

Rake

Negative

Length of Cut (mm)

6.1000

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2600

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Rake Angle

0

Chip Breaker

HW

Insert Style

MNHU

Insert Size Code

060308

Relief Angle

0.00

Included Angle Degree

86

Manufacturer Grade

IN2505

Inscribed Circle Range (Decimal Inch)

0.2000 to 0.3000

Single or Double Sided Insert

Double

Cutter Series Compatibility

1TJ1D

Length Range (Decimal Inch)

0.0000 to 0.3200

Thickness Range (Decimal Inch)

0.1750 to 0.1850

Iso Code

MNHU060308R-HW IN2505

Product Overview
Milling Insert: IN2505, Carbide TiAlN, TiN Coated, 0.184" Thick, 0.26" Wide
