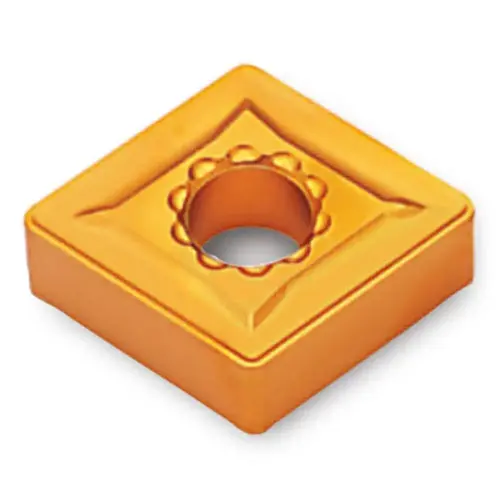

Ingersoll Cutting Tools 6213096 Turning Inserts; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (Decimal Inch): 0.0630 ; Included Angle: 80.0 ; Manufacturer Grade: TT8115B ; Coating/Finish: TiCN; Al2O3; TiN
Item #: 6213096 by Ingersoll Cutting Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Code
CNMG434RTTT8115B
Number of Cutting Edges
4
Included Angle
80.0
Insert Material
Solid Carbide
Series
CNMG
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0630
Primary Workpiece Material
Steel
Primary Workpiece Material Code
S
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
1.0000
Width (Inch)
1
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.5080
Insert Thickness (Decimal Inch)
0.1870
Maximum Depth of Cut (Decimal Inch)
0.2360
Rake
Negative
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Insert Shape
Diamond
Clearance Code
N
Insert Shape Code
C
Chip Breaker
RT
Insert Style
CNMG
Insert Size Code
434
Tolerance Code
M
Relief Angle
0
Inscribed Circle (Inch)
1/2
Manufacturer Grade
TT8115B
Iso Code
CNMG120416RT TT8115B
Product Overview
Turning Inserts; Relief Angle: 0 ; Insert Style: CNMG ; Corner Radius (Decimal Inch): 0.0630 ; Included Angle: 80.0 ; Manufacturer Grade: TT8115B ; Coating/Finish: TiCN; Al2O3; TiN
