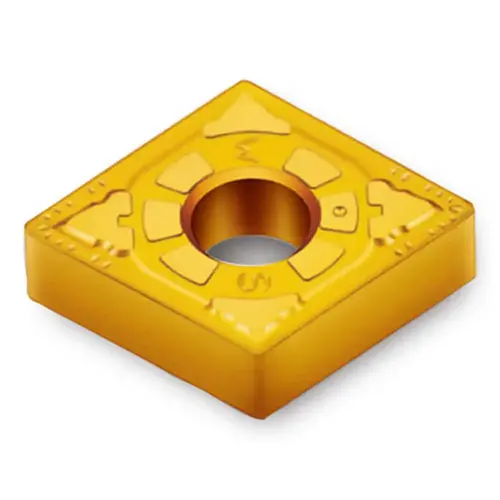

Ingersoll Cutting Tools 6236550 Turning Insert: CNMG431WS TT8115B, Solid Carbide Al2O3

Item #: 6236550 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary

$25.31

/each
SAVE UP TO 2.53
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Included Angle

80

Insert Material

Carbide

Series

CNMG

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0160

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

1.0000

Width (Inch)

1

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1870

Maximum Depth of Cut (Decimal Inch)

0.0790

Rake

Negative

Insert Hand

Neutral

Wiper Edge

Yes

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Insert Shape Code

C

Chip Breaker

WS

Insert Style

CNMG

Insert Size Code

431

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Chip Breaker Operation

Finishing

Manufacturer Grade

TT8115B

ISO Size Code

120404

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

431

ISO Insert Code

CNMG120404

Iso Code

CNMG120404WS TT8115B

ANSI Insert Code

CNMG431

Product Overview
Turning Insert: CNMG431WS TT8115B, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.016" Corner Radius, 80 degree Diamond, Series CNMG
