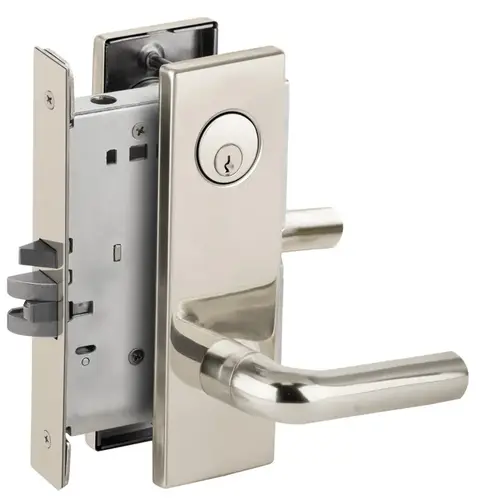

Schlage Institution Mortise Lock C Keyway with 02 Lever and N Escutcheon Bright Chrome Finish
Item #: L9082P 02N 625 by Schlage Commercial
Brand: Schlage
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Institution - Latchbolt Retracted by Key From Either Side, Knob/Lever on Both Sides Always Inoperative, Auxiliary Latch Deadlocks Latchbolt When Door is Locked,
- Handing: L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
- Door Thickness: 1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Backset: 2-3/4” (70 mm) only.
- Armored Front: L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional. L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
- Case Size: L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm) L400 Series: 4 7/16” x 3 5/8” x 1” (113 mm x 92 mm x 25 mm)
- Spacing: Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).
- Bolts: 1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.
- Exposed Trim
- Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D-Series knobs.
- Levers: Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
- Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
- Trim Combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
- Strike: L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
- Cylinder & Keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
Package Width
5.375
Package Volume
313.6816406
Package Length
10.375
Package Height
5.625
BAA Qualified
Yes
Origin
Mexico
Fire Rated
3 Hours {A}
Color Code
625/US26
Design
02 Lever and N Escutcheon
Strike
10-072 Strike
Series
L Series
Function
Institution
Finish
625 - Bright Chrome
Grade
Grade 1
Backset
2-3/4"
ANSI/BHMA Standards
F30
Keyed
Yes
Handle Type
Lever
Collection
L9000 Series
Keying
None (Select for Less Cylinder Options)
Cylinder
P - Conventional Cylinder 6-pin (C Keyway)
Electronic
No
Rose/Escutcheon Design
N - Escutcheon
Door Handing
Field Reversible
Lever Style
02 Lever
Standard Strike
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Substrate Type
CRS with Zinc Dichromate Plating
Door Thickness Range
1-3/4"
Lock Type
Mortise
Duty Level
Heavy Duty
IMAP Policy
Yes
Mortise Case Size
4-7/16" x 6-1/16" x 1"
Standard Cylinder
Conventional 6-pin Cylinder, C Keyway
Product Overview
Institution Mortise Lock, 02N Design, Bright Chrome
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Lock bodies are field-reversible without disassembly
Schlage L Series Extra Heavy Duty, Grade 1 Mortise Locks are built to withstand the rigors of daily use without fail. Lock bodies are field-reversible without disassembly.
