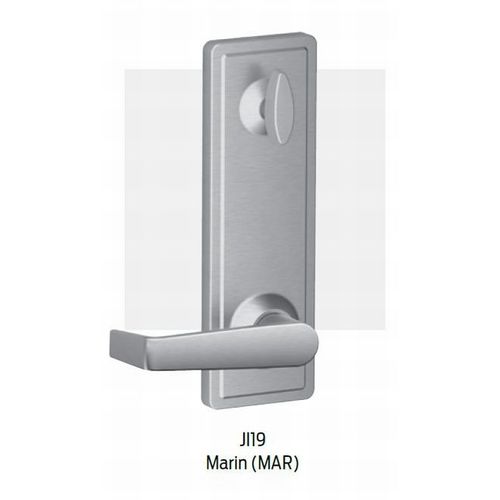

Schlage J Dexter Series JI19MAR630 Interior Interconnected Lock Marin with Adjustable Latch and Full Lip Strike Satin Stainless Steel Finish
Item #: JI19MAR630 by Dexter by Schlage
UPC #: 043156893973
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Passage Lock & Keyed Deadbolt Interconnect - Operated by Key from Outside or By Turn Unit from Inside
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
Handing
Reversible
Strike
Round Corner Full Lip Strike and Deadbolt Strike
Backset
Adjustable 2-3/8" or 2-3/4" Backset
Design
Marin
Finish
Satin Stainless Steel
Function
Passage Interconnect
Grade
ANSI/BHMA Grade 3
Application
Commercial
Warranty
Lifetime Mechanical Warranty and 5-Year Finish Warranty
Color Code
630/US32D
Door Thickness
1-3/8" to 1-3/4"
Bolt Throw
1 Inch
Finish Description
Satin Stainless Steel
Latch Type
Drive-In
Product Height
3 Inches
Strike Type
Full Lip
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
Inside lever trim, deadbolt, thumbturn, latch, strike, mounting hardware
Lever Style
MAR-Marin
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
Escutcheon
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.36-2010
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Bore Size: 2-1/8"; Cross Bore: 1"
Product Projection
2.4400 Inch
Features
Bolt Automatically Deadlocks When Fully Thrown; Latch Retracted by Lever from Either Side
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.15x3.94x9.05
Lever Style Family
Straight With Return Lever
Sub-Series
JI19-MAR-630
