Aiphone IS-SS-2RA Audio Door Station W/ Std. & Emergency Call Buttons

Item #: IS-SS-2RA by Aiphone Co., Ltd

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Power Source: IS-CCU, IS-SCU, IS-RCU, IS-IPC: 48V DC - Use IS-PU-UL
  • IS-IPDV, IS-IPDVF, IS-IPMV: 24V DC - Use PS-2420UL or PoE (802.3af)
  • Network: Interface: 10 BASE-T / 100 BASE-TX Ethernet, Protocol: TCP, UDP, IGMP (Multicast)
  • Software: Processor: 2GHz or faster, RAM: minimum 1GB, Storage: 10MB or more (additional memory required for movie recording), Sound Card: 8-bit full duplex - DirectSound compatible, Display: 1024 x 786 or higher, Runtime: Microsoft.NET framework 2.0 or later, Network: Wired 100Base-TX recommended, Operating System: Windows XP (SP3), Windows Vista (SP1), or Windows 7
  • Connections: RJ45 (10/100 Mbit Ethernet)
  • Calling: Chime, image, and audio approx. 45 seconds
  • Video Monitor: 3-1/2" direct-view TFT color LCD
  • Min. Illumination: 5 Lux at 1' distance
  • Night Viewing: Up to 1' from camera with white LED projected
  • Door Release:Contact rating: 24V AC/DC, 500mA
Product Overview

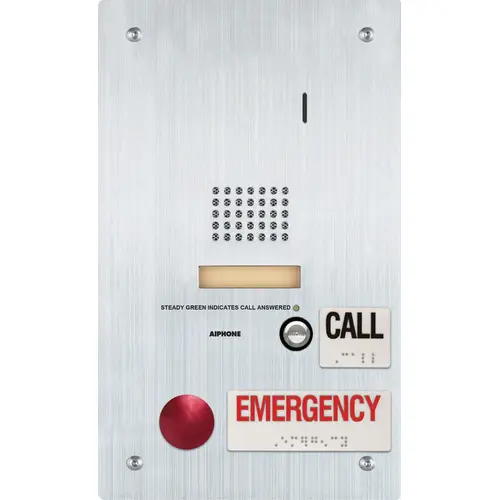

Audio Door Station W/ Std. & Emergency Call Buttons

Equipped with ADA compliant lettering and Braille signage for both the standard and emergency call buttons. Also equipped with a CCTV camera input for integration of a separate camera for viewing the area where the unit is located. The camera will come on when a call is placed from the unit, or when called by the master station. A directory strip for location identification is also provided. Compatible with the IS series communication system. Wiring is CAT-5e or CAT-6 to the designated exchange unit (IS-CCU, IS-SCU).

All-in-one security control system.

The IS system can unlock doors remotely on a network, assist onsite visitors from an offsite phone, broadcast emergency announcements, and communicate using a standard or PC Master Station.
