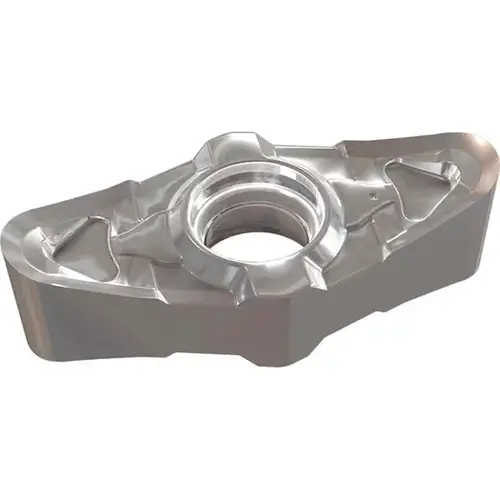

Iscar 3303939 Turning Insert: VNGU220630R3N IC20, Solid Carbide Uncoated

Item #: 3303939 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$59.17

/each
SAVE UP TO 5.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

35.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.1180

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Length (Decimal Inch)

0.8660

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.1770

Rake

Positive

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

V

Chip Breaker

RN3

Insert Style

VNGU

Insert Size Code

220630

Tolerance Code

G

Maximum Depth of Cut (mm)

4.50

Manufacturer Grade

IC20

Length Range (Decimal Inch)

0.7000 - 10.0000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

3.00

Iso Code

ISO 13399

Product Overview
Turning Insert: VNGU220630R3N IC20, Solid Carbide Uncoated, 22 mm Long, 12.7 mm Inscribed Circle, 3 mm Corner Radius, 35 degree Diamond, Series Isoturn
