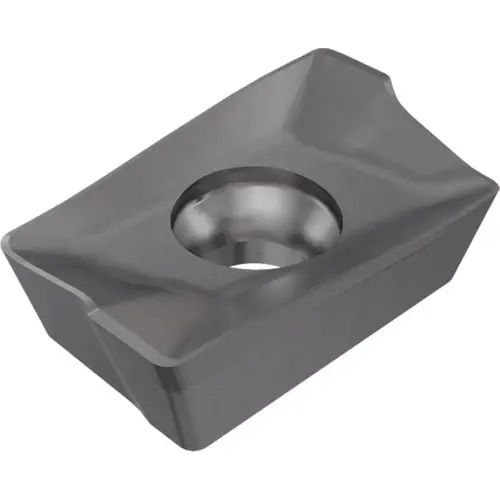

Milling Insert: HM90 APKT 1003PDR, IC882, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 3309396 Milling Insert: HM90 APKT 1003PDR, IC882, Solid Carbide AlTiN

Item #: 3309396 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$40.17

/each
SAVE UP TO 4.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 310 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Series

HELI2000

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0315

Cutting Edge Style

Honed

Material Application

Stainless Steel

Length (mm)

11.45

ANSI Code

HM90 APKT 1003PDR IC882

Number of Cutting Edges

2

Standards

ANSI

Thickness (mm)

3.53

Insert Material

Solid Carbide

Length (Decimal Inch - 4 Decimals)

0.4510

Manufacturers Catalog Number

HM90 APKT 1003PDR IC882

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Thickness (Decimal Inch - 4 Decimals)

0.1390

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2660

Width (Inch)

17/64

Width (mm - 2 Decimals)

6.76

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3860

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2660

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Chip Breaker

PDR

Secondary Workpiece Material Code

S

Insert Style

APKT

Insert Size Code

1003

Relief Angle

11.00

Included Angle Degree

85

Inscribed Circle (Inch)

17/64

Cutting Edge Effective Length (Decimal Inch)

0.4040

Maximum Depth of Cut (mm)

10.26

Manufacturer Grade

IC882

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Single

Cutter Series Compatibility

HM90-10

Length Range (Decimal Inch)

0.4500 to 0.5000

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Corner Radius (mm)

0.80

Iso Code

HM90 APKT 1003PDR

Product Overview
Milling Insert: HM90 APKT 1003PDR, IC882, Solid Carbide Coated, 3.53 mm Thick, 6.76 mm Wide
