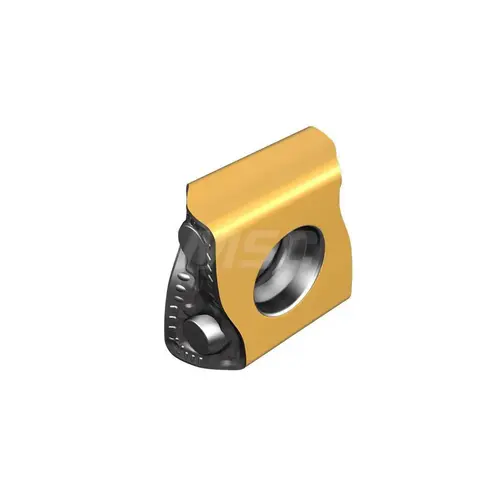

LNMX150616L-HT IC830 Carbide Turning Insert TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 3314630 LNMX150616L-HT IC830 Carbide Turning Insert TiAlN

Item #: 3314630 by Iscar

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$34.82

/each
SAVE UP TO 3.48
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 60 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Insert Thickness

13.40

Insert Material

Carbide

Series

Isoturn

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0630

Manufacturers Catalog Number

3314630

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Length (Decimal Inch)

0.5910

Insert Thickness (Decimal Inch)

0.5280

Maximum Depth of Cut (Decimal Inch)

0.3150

Rake

Positive

Insert Hand

Left Hand

Insert Length (mm)

15.00

Insert Shape

L - Rectangle

Clearance Code

N

Insert Shape Code

L

Chip Breaker

HT

Insert Style

LNMX

Insert Size Code

150

Tolerance Code

M

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

8.00

Chip Breaker Operation

Finishing

Manufacturer Grade

IC830

ISO Size Code

150616

Grade Characteristics

Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness

ISO Insert Code

LNMX150616

Corner Radius (mm)

1.60

Proprietary Coating Designation

SumoTec

Iso Code

LNMX 150616L-HT

ANSI Insert Code

LNMX

Product Overview
LNMX150616L-HT IC830 Carbide Turning Insert TiAlN/AlTiN/TiN Finish, LH, 1.6mm Corner Radius, 13.4mm Thick, Tangential
