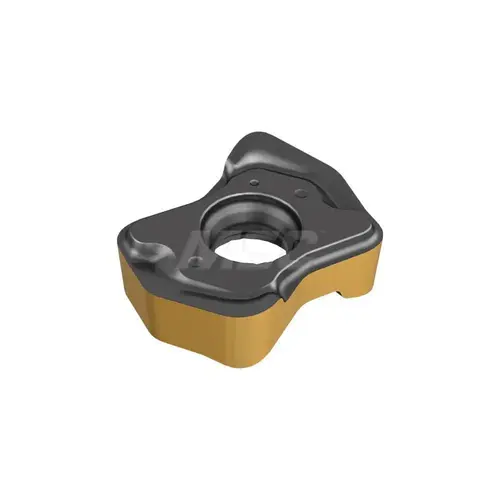

Milling Insert: FFX4 XNMU 040310T, IC830, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 3336657-XCP10 Milling Insert: FFX4 XNMU 040310T, IC830, Solid Carbide - pack of 10

Item #: 3336657-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$275.28

/package
SAVE UP TO 27.53
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Material Application

Steel

Length (mm)

9.58

ANSI Code

FFX4 XNMU 040310T IC830

Number of Cutting Edges

4

Standards

ANSI

Thickness (mm)

3.95

Insert Material

Solid Carbide

Series

LOGIQ4FEED

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0394

Length (Decimal Inch - 4 Decimals)

0.3770

Manufacturers Catalog Number

FFX4 XNMU 040310T IC830

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1555

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2820

Width (mm - 2 Decimals)

7.16

Coating Classification

Sumotec PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0315

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2820

Insert Shape

Bone

Chip Breaker

T

Secondary Workpiece Material Code

S

Insert Style

XNMU

Insert Size Code

040310

Relief Angle

0.00

Included Angle Degree

90

Cutting Edge Effective Length (Decimal Inch)

0.0315

Maximum Depth of Cut (mm)

1.20

Manufacturer Grade

IC830

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Single or Double Sided Insert

Double

Cutter Series Compatibility

FFX4

Length Range (Decimal Inch)

0.3200 to 0.4000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Corner Radius (mm)

1.00

Iso Code

FFX4 XNMU 040310T

Product Overview
Milling Insert: FFX4 XNMU 040310T, IC830, Solid Carbide Coated, 3.95 mm Thick, 7.16 mm Wide
