End Replaceable Milling Tip: MM EC500H75R015CF-4T08 IC908, Carbide - pack of 2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

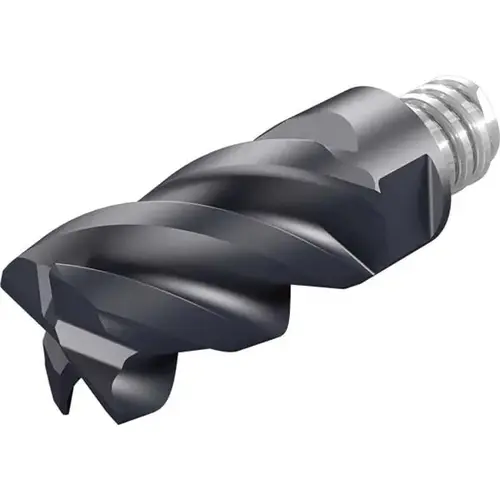

Iscar 3336733-XCP2 End Replaceable Milling Tip: MM EC500H75R015CF-4T08 IC908, Carbide - pack of 2

Item #: 3336733-XCP2 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$516.98

/package
SAVE UP TO 51.70
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

46

Number of Flutes

4

Standards

ANSI

Tool Material

Carbide

Chipbreaker

None

Series

MM EC-Z4-1.5xD

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0150

Length of Cut (Inch)

3/4in

Manufacturers Catalog Number

3336733

Material Grade

Sub Micrograin

Overall Length (Decimal Inch)

1.0630in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.5000in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.75

Insert Hand

Right Hand

Cutting Diameter (mm)

12.70

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM EC

Milling Tip Type

Corner Radius

Manufacturer Grade

IC908

Functional Length (Decimal Inch)

1.0630

Milling Tip Full Description

MM EC500H75R015CF-4T08

Corner Radius (mm)

0.38

Product Overview
End Replaceable Milling Tip: MM EC500H75R015CF-4T08 IC908, Carbide 4 Flutes, 0.75" Max Depth of Cut, Series MM
