Turning Insert: CCMT 432-14 IC-20, Solid Carbide Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

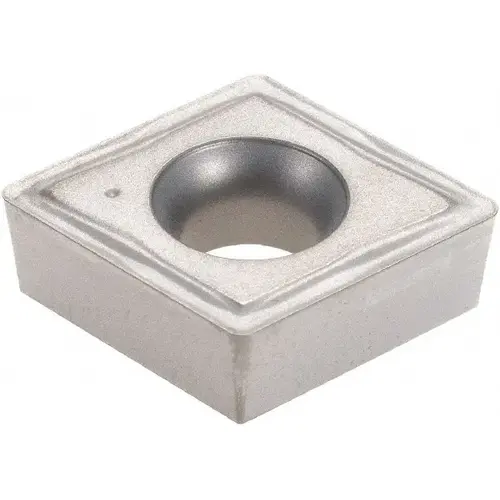

Iscar 5500036 Turning Insert: CCMT 432-14 IC-20, Solid Carbide Uncoated

Item #: 5500036 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$23.00

/each
SAVE UP TO 2.30
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 360 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.0315

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1181

Rake

Positive

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

C

Chip Breaker

14

Insert Style

CCMT

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2165

Relief Angle

7

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.50

Maximum Depth of Cut (mm)

3.00

Manufacturer Grade

IC20

Length Range (Decimal Inch)

0.5000 - 0.6000

Corner Radius (mm)

0.03

Iso Code

ISO 13399

Product Overview
Turning Insert: CCMT 432-14 IC-20, Solid Carbide Uncoated, 12.9 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Isoturn
