Turning Insert: DCMT 3-1-14 IC-20, Solid Carbide Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

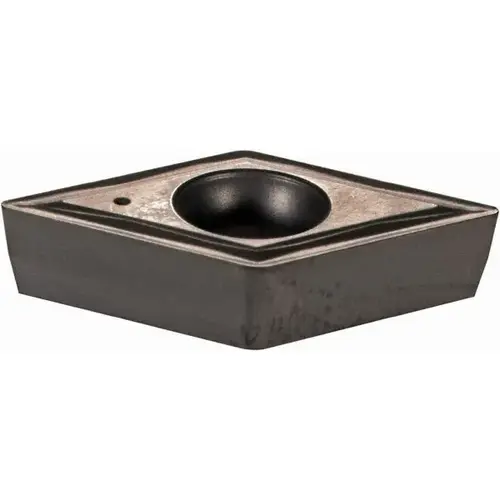

Iscar 5500340 Turning Insert: DCMT 3-1-14 IC-20, Solid Carbide Uncoated

Item #: 5500340 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$22.07

/each
SAVE UP TO 2.21
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

55.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

DCMT 3-1-14

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4570

Insert Thickness (Decimal Inch)

0.1560

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0980

Multi-use Tool

Yes

Rake

Positive

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

11.61

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

D

Chip Breaker

14

Insert Style

DCMT

Insert Size Code

3-1

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Boring

Hole Diameter (Mm) ( - 0 Decimals)

4.39

Maximum Depth of Cut (mm)

2.49

Manufacturer Grade

IC20

Length Range (Decimal Inch)

0.4000 - 0.5000

Corner Radius (mm)

0.02

Iso Code

DCMT 3-1-14

Product Overview
Turning Insert: DCMT 3-1-14 IC-20, Solid Carbide Uncoated, 11.61 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series Isoturn
