Turning Insert: WNMG 432-PP IC-28, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

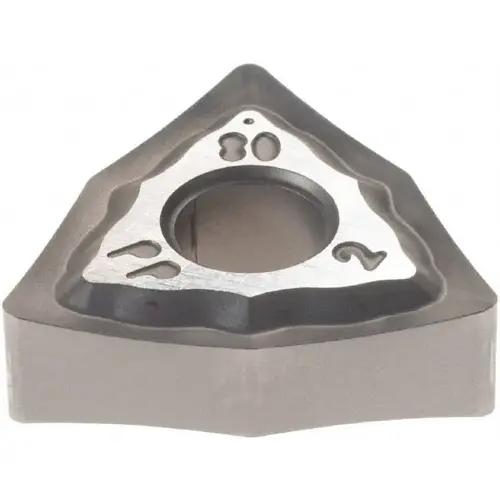

Iscar 5502820 Turning Insert: WNMG 432-PP IC-28, Solid Carbide Bright/Uncoated

Item #: 5502820 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$18.90

/each
SAVE UP TO 1.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Side Clearance

Negative

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0315

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3425

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1575

Rake

Positive

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

8.70

Corner Radius (Inch)

1/32

Insert Shape

W - Trigon 80-Deg

Clearance Code

N

Insert Shape Code

W

Chip Breaker

PP

Insert Style

WNMG

Insert Size Code

432

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Maximum Depth of Cut (mm)

4.00

Chip Breaker Operation

Roughing

Manufacturer Grade

IC28

ISO Size Code

080402

Grade Characteristics

Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

432

ISO Insert Code

WNMG080402

Corner Radius (mm)

0.03

Iso Code

ISO 13399

ANSI Insert Code

WNMG432

Product Overview
Turning Insert: WNMG 432-PP IC-28, Solid Carbide Uncoated, 8.7 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series Isoturn
