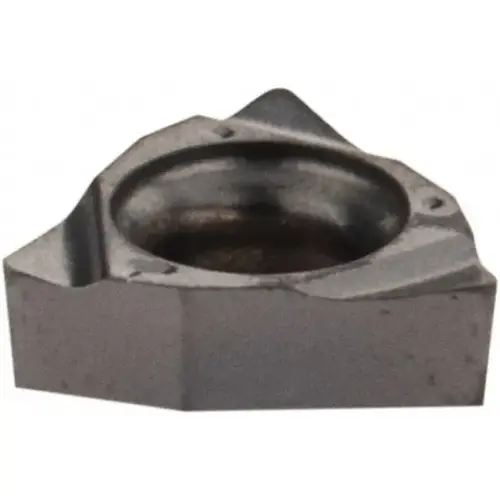

Iscar 5503038-XCP10 Turning Insert: WBMT 520L IC-354, Solid Carbide - pack of 10

Item #: 5503038-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$255.50

/package
SAVE UP TO 25.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 35 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Length (mm)

2.18

Standards

ISO 13399

Chipbreaker

T

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0079

Length (Decimal Inch - 4 Decimals)

0.0858

Manufacturers Catalog Number

WBMT520L

Material Grade

C5

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.0790

Rake

Positive

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.1563

Insert Shape

Trigon

Insert Style

WBMT

Insert Size Code

520

Hole Diameter (Decimal Inch)

0.0890

Relief Angle

5

Inscribed Circle (Inch)

5/32

Maximum Depth of Cut (mm)

20.00

Manufacturer Grade

IC354

Iso Code

ISO 13399

Product Overview
Turning Insert: WBMT 520L IC-354, Solid Carbide TiCN Coated, Left Hand, 2.18 mm Long, 5/32" Inscribed Circle, 0.0079" Corner Radius, 80 degree Trigon, Series Isoturn
