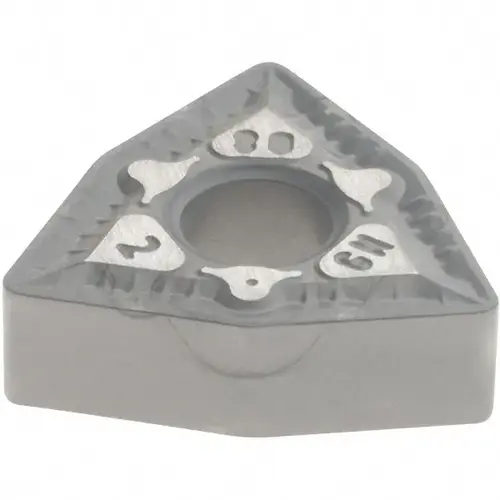

Turning Insert: WNMG 432-GN IC-2, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5503262-XCP10 Turning Insert: WNMG 432-GN IC-2, Solid Carbide - pack of 10

Item #: 5503262-XCP10 by Iscar

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0315

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3425

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1772

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

8.70

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Insert Shape Code

W

Chip Breaker

GN

Insert Style

WNMG

Insert Size Code

432

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Maximum Depth of Cut (mm)

4.50

Manufacturer Grade

IC20

Length Range (Decimal Inch)

0.3000 - 0.4000

Iso Code

ISO 13399

Product Overview
Turning Insert: WNMG 432-GN IC-2, Solid Carbide Uncoated, 8.7 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series Isoturn
