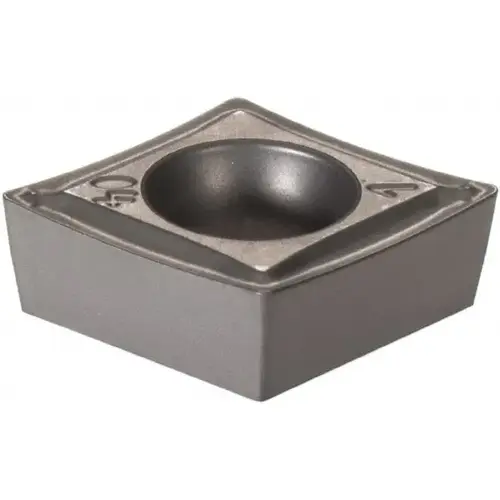

Turning Insert: CCMT 3-1-SMIC-20, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5504070-XCP10 Turning Insert: CCMT 3-1-SMIC-20, Solid Carbide - pack of 10

Item #: 5504070-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$175.00

/package
SAVE UP TO 17.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Side Clearance

Positive

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

CCMT 3-1-SM

Primary Workpiece Material

Universal

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3820

Insert Thickness (Decimal Inch)

0.1560

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0980

Multi-use Tool

Yes

Rake

Positive

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.70

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

C

Insert Shape Code

C

Chip Breaker

SM

Insert Style

CCMT

Insert Size Code

3-1

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.39

Maximum Depth of Cut (mm)

2.49

Chip Breaker Operation

Finishing

Manufacturer Grade

IC20

ISO Size Code

09T304

Grade Characteristics

Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

3-1

ISO Insert Code

CCMT09T304

Iso Code

CCMT 3-1-SM

ANSI Insert Code

CCMT3-1

Product Overview
Turning Insert: CCMT 3-1-SMIC-20, Solid Carbide Uncoated, 9.7 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Isoturn
