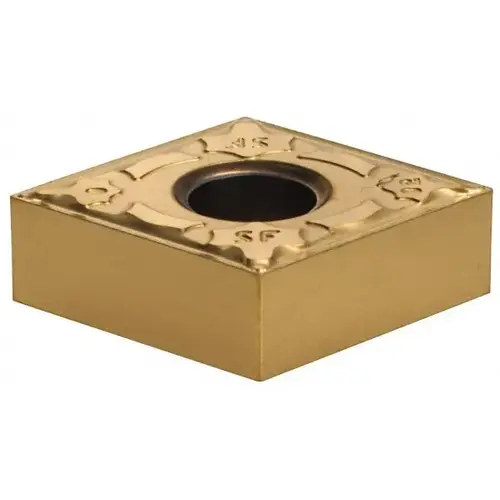

Turning Insert: CNMG 430-SF IC-520N, Cermet - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5504092-XCP10 Turning Insert: CNMG 430-SF IC-520N, Cermet - pack of 10

Item #: 5504092-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$237.82

/package
SAVE UP TO 23.78
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Cermet

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0079

Material Grade

C6

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0787

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

SF

Insert Style

CNMG

Insert Size Code

430

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Maximum Depth of Cut (mm)

2.00

Manufacturer Grade

IC520N

Length Range (Decimal Inch)

0.5000 - 0.6000

Iso Code

ISO 13399

Product Overview
Turning Insert: CNMG 430-SF IC-520N, Cermet TiCN & TiN Coated, 12.9 mm Long, 1/2" Inscribed Circle, 0.0079" Corner Radius, 80 degree Diamond, Series Isoturn
