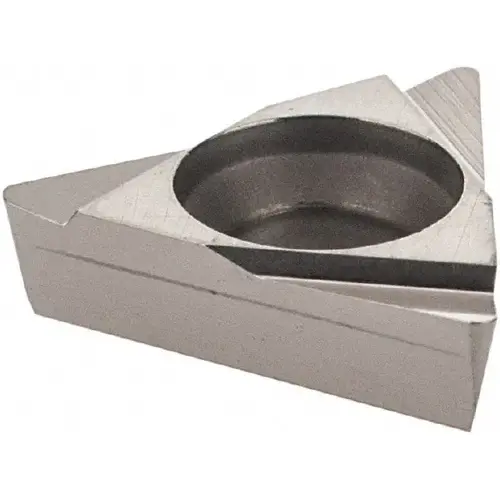

Boring Insert: TPGX731 IC20N, Cermet - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5504408-XCP10 Boring Insert: TPGX731 IC20N, Cermet - pack of 10

Item #: 5504408-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$252.35

/package
SAVE UP TO 25.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Triangle

Length (mm)

9.52

Standards

ISO 13399

Included Angle

60

Thickness (mm)

2.38

Insert Material

Cermet

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.3748

Material Grade

C6

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Thickness (Decimal Inch - 4 Decimals)

0.0937

Thickness (Inch)

3/32

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0980

Rake

Positive

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.2189

Corner Radius (Inch)

1/64

Insert Shape

Triangle

Insert Style

TPGX

Insert Size Code

731

Hole Diameter (Decimal Inch)

0.0984

Relief Angle

11

Inscribed Circle (Inch)

7/32

Hole Diameter (Mm) ( - 0 Decimals)

2.50

Manufacturer Grade

IC20N

Inscribed Circle (mm)

5.56

Iso Code

ISO 13399

Product Overview
Boring Insert: TPGX731 IC20N, Cermet Uncoated, 60 degree Triangle, 1/64" Corner Radius, 7/32" Inscribed Circle, 3/32" Thick, 11 degree Relief Angle
