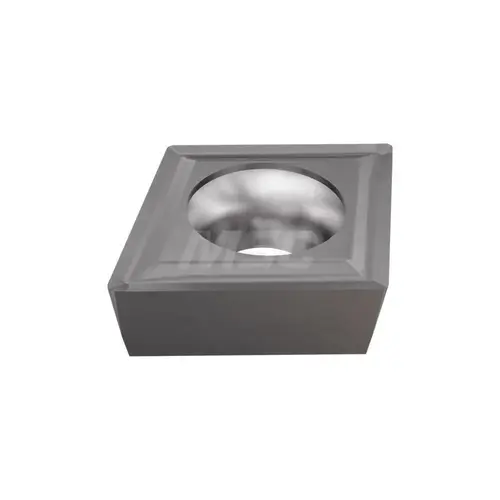

Iscar 5504412 Turning Insert: CCGT 2-0L IC30N, Solid Carbide Uncoated

Item #: 5504412 by Iscar

See reviewsSee reviews
See reviews summary

$28.35

/each
SAVE UP TO 2.84
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Cutting Direction

Left Hand

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.0079

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.2480

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Maximum Depth of Cut (Decimal Inch)

0.0787

Rake

Positive

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

6.30

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

C

Chip Breaker

T

Insert Style

CCGT

Insert Size Code

2-0

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1102

Relief Angle

7

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

2.00

Manufacturer Grade

IC30N

Length Range (Decimal Inch)

0.0000 - 0.3000

Iso Code

ISO 13399

Product Overview
Turning Insert: CCGT 2-0L IC30N, Solid Carbide Uncoated, 6.3 mm Long, 1/4" Inscribed Circle, 0.0079" Corner Radius, 80 degree Diamond, Series Isoturn
