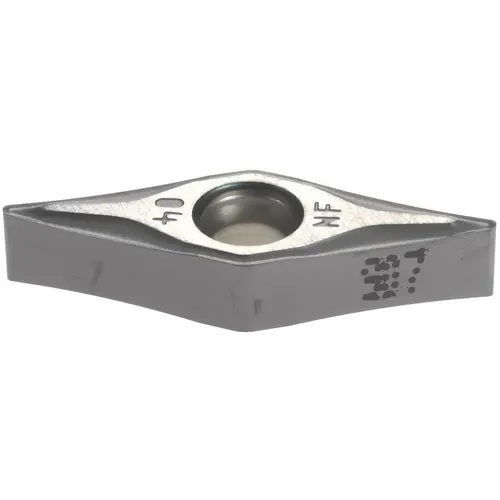

Turning Insert: VNGG 2.5-1-NF IC907, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5505244-XCP10 Turning Insert: VNGG 2.5-1-NF IC907, Solid Carbide - pack of 10

Item #: 5505244-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$444.04

/package
SAVE UP TO 44.40
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

35

ANSI Insert Code

VNGG2.5-1

Iso Code

ISO 13399

ISO Insert Code

VNGG12T304

Inscribed Circle (mm)

7.15

ANSI Size Code

2.5-1

Length Range (Decimal Inch)

0.4000 - 0.5000

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ISO Size Code

12T304

Manufacturer Grade

IC907

Chip Breaker Operation

Finishing

Maximum Depth of Cut (mm)

3.00

Inscribed Circle (Inch)

9/32

Relief Angle

0

Tolerance Code

G

Insert Size Code

2.5-1

Insert Style

VNGG

Chip Breaker

NF

Insert Shape Code

V

Clearance Code

N

Insert Shape

V - Diamond (Rhombic) 35-Deg

Corner Radius (Inch)

1/64

Insert Length (mm)

12.40

Inscribed Circle (Decimal Inch)

0.2815

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.1181

Insert Thickness (Inch)

5/32

Insert Thickness (Decimal Inch)

0.1560

Insert Length (Decimal Inch)

0.4882

Insert Holding Method

Clamp

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Universal

Material Grade

Submicron

Corner Radius (Decimal Inch)

0.0157

Coating/Finish

TiAlN

Coating Process

PVD

Side Clearance

Negative

Series

Isoturn

Insert Material

Carbide

Product Overview
Turning Insert: VNGG 2.5-1-NF IC907, Solid Carbide TiAlN & TiN Coated, 12.4 mm Long, 9/32" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond, Series Isoturn
