Boring Insert: TPGX731 IC908, Solid Carbide TiAlN

Roll over image to zoom in

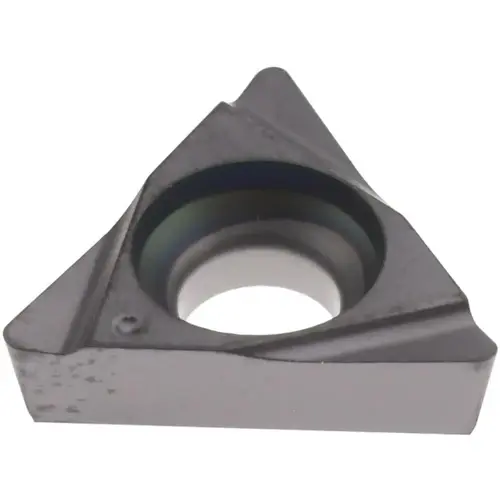

Iscar 5505576 Boring Insert: TPGX731 IC908, Solid Carbide TiAlN

Item #: 5505576 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$29.33

/each
SAVE UP TO 2.93

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 282 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Standards

ISO 13399

Included Angle

60

Thickness (mm)

2.38

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.3748

Material Grade

C1

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Thickness (Decimal Inch - 4 Decimals)

0.0937

Thickness (Inch)

3/32

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0980

Rake

Positive

Insert Hand

Left Hand

Inscribed Circle (Decimal Inch)

0.2189

Corner Radius (Inch)

1/64

Insert Shape

Triangle

Insert Style

TPGX

Insert Size Code

731

Hole Diameter (Decimal Inch)

0.0984

Relief Angle

11

Inscribed Circle (Inch)

7/32

Hole Diameter (Mm) ( - 0 Decimals)

2.50

Manufacturer Grade

IC908

Inscribed Circle (mm)

5.56

Iso Code

ISO 13399

Length (mm)

9.52

Shape

Triangle

Product Overview
Boring Insert: TPGX731 IC908, Solid Carbide TiAlN Coated, 60 degree Triangle, 1/64" Corner Radius, 7/32" Inscribed Circle, 3/32" Thick, 11 degree Relief Angle
