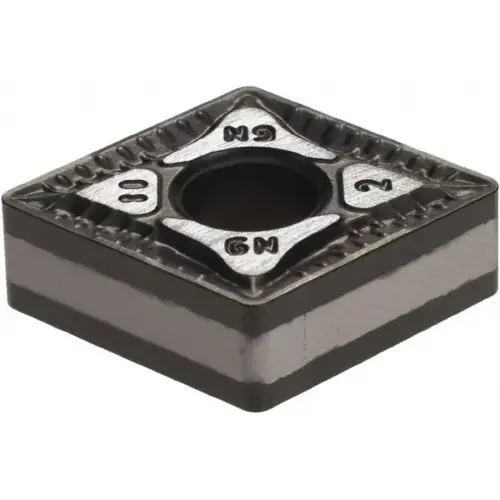

Turning Insert: CNMG 432-GN IC5010, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5507745-XCP10 Turning Insert: CNMG 432-GN IC5010, Solid Carbide - pack of 10

Item #: 5507745-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$261.62

/package
SAVE UP TO 26.16
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 41 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1772

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

GN

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Maximum Depth of Cut (mm)

4.50

Manufacturer Grade

IC5010

Length Range (Decimal Inch)

0.5000 - 0.6000

Iso Code

ISO 13399

Product Overview
Turning Insert: CNMG 432-GN IC5010, Solid Carbide TiCN, Al2O3 & TiN Coated, 12.9 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Isoturn
