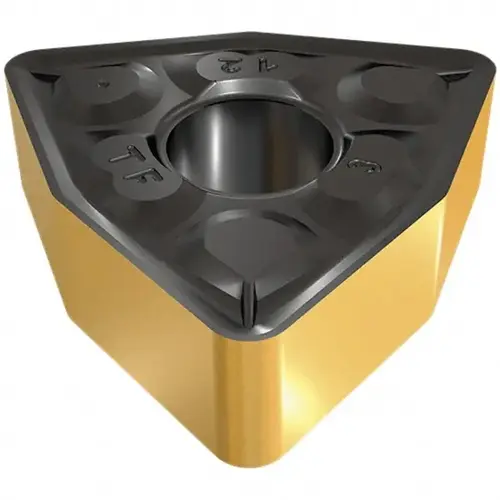

Iscar 5507753 WNMG432-TF IC830 Carbide Turning Insert TiAlN

Item #: 5507753 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$26.02

/each
SAVE UP TO 2.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

WNMG 432-TF

Proprietary Coating Designation

SumoTec

Corner Radius (mm)

0.80

Inscribed Circle (mm)

12.70

Length Range (Decimal Inch)

0.3000 - 0.4000

Manufacturer Grade

IC830

Maximum Depth of Cut (mm)

4.00

Tolerance Code

M

Insert Size Code

432

Insert Style

WNMG

Chip Breaker

TF

Insert Shape Code

W

Clearance Code

N

Insert Shape

Trigon

Insert Length (mm)

8.70

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Right Hand

Secondary Workpiece Material

None

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.1570

Insert Thickness (Decimal Inch)

0.1870

Insert Length (Decimal Inch)

0.3430

Vendor Drop Ship

N

Primary Workpiece Material Code

M

Primary Workpiece Material

M

Manufacturers Catalog Number

5507753

Corner Radius (Decimal Inch)

0.0310

Coating/Finish

TiAlN

Coating Process

PVD

Series

Isoturn

Insert Material

Solid Carbide

Included Angle

80.0

Insert Thickness

4.76

Standards

ISO 13399

Product Overview
WNMG432-TF IC830 Carbide Turning Insert TiAlN/AlTiN/TiN Finish, RH, 8.7mm Long, 12.7mm Inscribed Circle, 0.8mm Corner Radius, 4.76mm Thick, 80 degree Trigon
