ICP0992-2M IC908 Carbide Replaceable Tip Drill TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

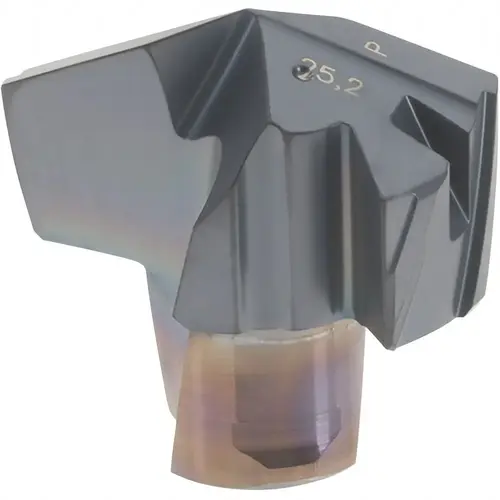

Iscar 5509687 ICP0992-2M IC908 Carbide Replaceable Tip Drill TiAlN

Item #: 5509687 by Iscar

See reviewsSee reviews
See reviews summary

$286.98

/each
SAVE UP TO 28.70
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Style

Double Margin

Tip Material

Solid Carbide

Flute Type

Spiral

Applications

Drilling

Number of Flutes

2

Standards

ISO 13399

Series

ICP-2M

Point Type

Double Margin

Spiral Type

Slow Spiral

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Height (Decimal Inch)

0.5710

Material Grade

Submicron

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Vendor Drop Ship

N

Coating Classification

PVD

Drill Point Angle

140

Insert Holding Method

Twist

Secondary Workpiece Material

Stainless Steel

Web Thinning

Web Thinned

Cutting Diameter (Decimal Inch)

0.9920

Secondary Workpiece Material Code

M

ISO Number

ICP 252-2M

Included Angle Degree

140

Manufacturer Grade

IC908

Functional Length (Decimal Inch)

0.3900

Insert Seat Size

25

Insert Geometry

P

Overall Length/Projection (Decimal Inch)

0.5710

Product Overview
ICP0992-2M IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140 degree Included Angle, 0.992" Diam, 0.571mm High, Through Coolant, Series ICP-2M
