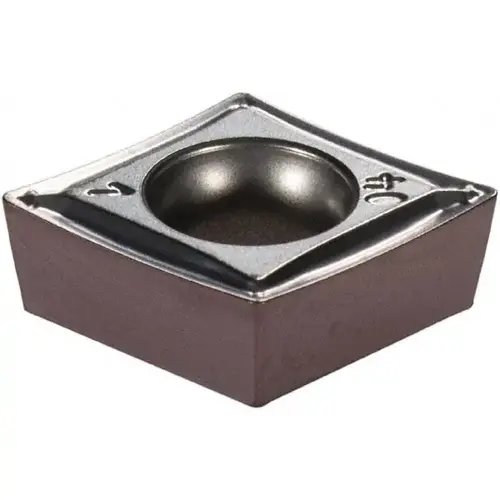

Iscar 5509903-XCP10 Turning Insert: CCMT3-1SM IC806, Solid Carbide - pack of 10

Item #: 5509903-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$227.32

/package
SAVE UP TO 22.73
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 115 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Insert Thickness (Decimal Inch)

0.1560

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0980

Maximum Depth of Cut (mm)

2.49

Iso Code

CCMT 3-1-SM

Relief Angle

7

Clearance Code

C

Rake

Positive

Material Grade

Submicron

Insert Length (Decimal Inch)

0.3820

Insert Holding Method

Screw

Coating/Finish

TiN

Corner Radius (Inch)

1/64

Insert Style

CCMT

Manufacturers Catalog Number

CCMT 3-1-SM

Manufacturer Grade

IC806

Inscribed Circle (Inch)

3/8

Standards

ISO 13399

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.70

Coating Process

PVD

Primary Workpiece Material

Superalloy

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0160

Insert Thickness (Inch)

5/32

Hole Diameter (Decimal Inch)

0.1730

Chip Breaker

SM

Length Range (Decimal Inch)

0.3000 - 0.4000

Multi-use Tool

Yes

Tolerance Code

M

Insert Size Code

3-1

Included Angle

80.0

Series

Isoturn

Single Or Double End

Single

Hole Diameter (Mm) ( - 0 Decimals)

4.39

Insert Shape

Diamond

Primary Workpiece Material Code

S

Product Overview
Turning Insert: CCMT3-1SM IC806, Solid Carbide TiN & TiAlN Coated, 9.7 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Isoturn
