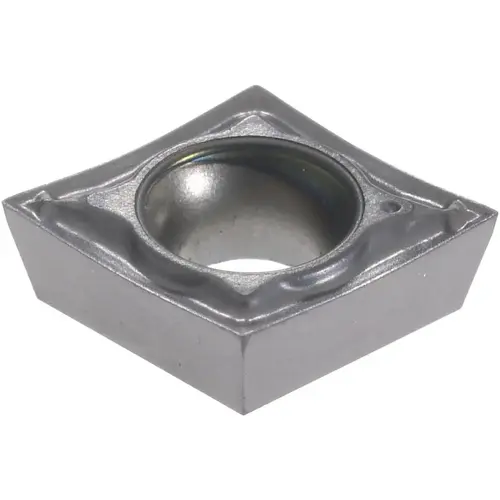

Turning Insert: CPGT 2-.004-SM IC907, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5510088-XCP10 Turning Insert: CPGT 2-.004-SM IC907, Solid Carbide - pack of 10

Item #: 5510088-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$347.20

/package
SAVE UP TO 34.72
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 54 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0039

Primary Workpiece Material

Universal

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0790

Rake

Positive

Inscribed Circle (Decimal Inch)

0.2500

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Insert Shape Code

C

Chip Breaker

SM

Insert Style

CPGT

Insert Size Code

2-004

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1100

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

2.00

Chip Breaker Operation

Finishing

Manufacturer Grade

IC907

ISO Size Code

060201

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

2-004

ISO Insert Code

CPGT060201

Corner Radius (mm)

0.10

Iso Code

ISO 13399

ANSI Insert Code

CPGT2-004

Product Overview
Turning Insert: CPGT 2-.004-SM IC907, Solid Carbide TiAlN & TiN Coated, 0.1 mm Corner Radius, 80 degree Diamond, Series Isoturn
