Turning Insert: VCGT 220530-AS IC-2, Solid Carbide Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5540015 Turning Insert: VCGT 220530-AS IC-2, Solid Carbide Uncoated

Item #: 5540015 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$54.19

/each
SAVE UP TO 5.42
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

35.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.1181

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.8701

Insert Thickness (Decimal Inch)

0.2189

Insert Thickness (Inch)

7/32

Maximum Depth of Cut (Decimal Inch)

0.1772

Rake

Positive

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.10

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

V

Chip Breaker

AS

Insert Style

VCGT

Insert Size Code

220

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.2165

Relief Angle

7

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.50

Maximum Depth of Cut (mm)

4.50

Manufacturer Grade

IC20

Length Range (Decimal Inch)

0.7000 - 10.0000

Corner Radius (mm)

3.00

Iso Code

ISO 13399

Product Overview

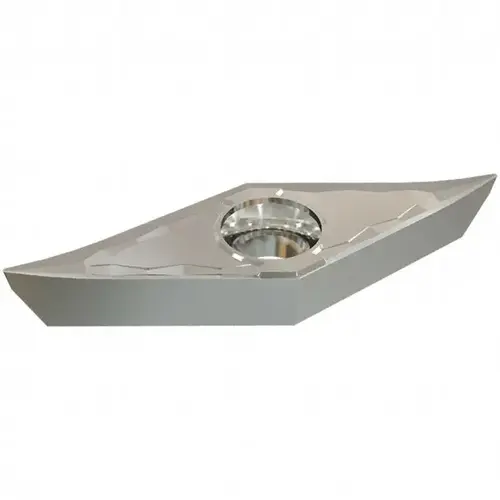

Turning Insert: VCGT 220530-AS IC-2, Solid Carbide Uncoated, 22.1 mm Long, 1/2" Inscribed Circle, 3 mm Corner Radius, 35 degree Diamond, Series Isoturn
