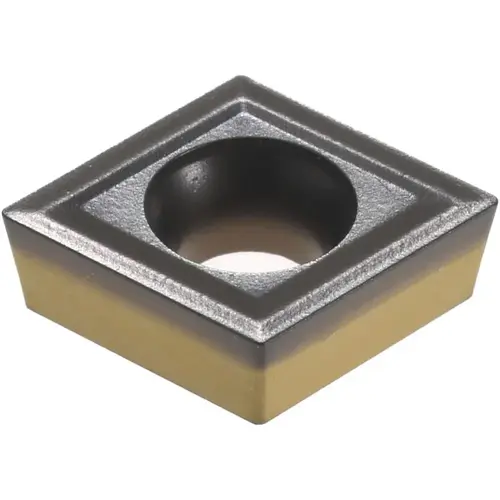

Iscar 5550206 Turning Insert: CCMT20 IC8250, Solid Carbide TiCN

Item #: 5550206 by Iscar

See reviewsSee reviews
See reviews summary

$21.35

/each
SAVE UP TO 2.14
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.0937

Side Clearance

Positive

Vendor Drop Ship

Y

ISO Insert Code

CCMT060202

Maximum Depth of Cut (mm)

2.00

Iso Code

CCMT21.50.5

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

Relief Angle

7

Clearance Code

C

Rake

Positive

ANSI Insert Code

CCMT2-0

Insert Holding Method

Screw

Stocking Category

D

Coating/Finish

TiCN

UNSPSC Code

23242105

Insert Style

CCMT

ANSI Size Code

2-0

Manufacturer Grade

IC8250

Inscribed Circle (Inch)

1/4

Secondary Workpiece Material Code

M

Standards

ISO 13399

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

6.30

Coating Process

PVD

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0080

Insert Thickness (Inch)

3/32

Hole Diameter (Decimal Inch)

0.1100

Chip Breaker

CCGT

Tolerance Code

M

ISO Size Code

060202

Insert Size Code

2-0

Included Angle

80

Series

Isoturn

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

No Chip Breaker

Primary Workpiece Material Code

P

Product Overview
Turning Insert: CCMT20 IC8250, Solid Carbide TiCN, Al2O3 & TiN Coated, 6.3 mm Long, 1/4" Inscribed Circle, 0.008" Corner Radius, 80 degree Diamond, Series Isoturn
