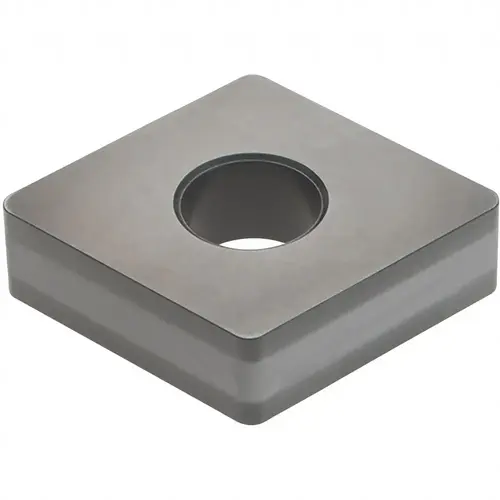

Iscar 5550237 Turning Insert: CNMA643 IC5005, Solid Carbide TiCN

Item #: 5550237 by Iscar

See reviewsSee reviews
See reviews summary

$50.82

/each
SAVE UP TO 5.08
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0472

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7598

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.3937

Inscribed Circle (Decimal Inch)

0.7500

Insert Length (mm)

19.30

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

A

Insert Style

CNMA

Insert Size Code

643

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

3/4

Maximum Depth of Cut (mm)

10.00

Manufacturer Grade

IC5005

Length Range (Decimal Inch)

0.7000 - 10.0000

Iso Code

ISO 13399

Product Overview
Turning Insert: CNMA643 IC5005, Solid Carbide TiCN, Al2O3 & TiN Coated, 19.3 mm Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series Isoturn
