Turning Insert: CNMG 643-PP, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

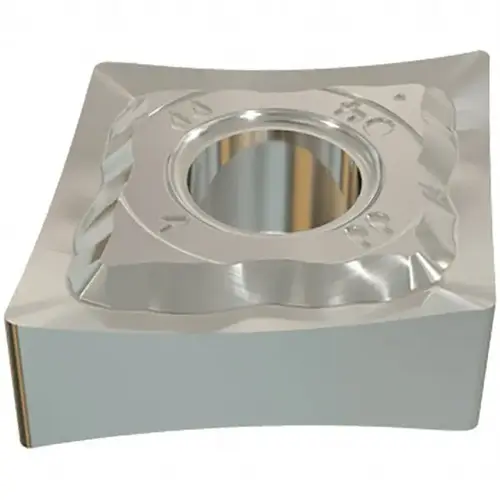

Iscar 5550263 Turning Insert: CNMG 643-PP, Solid Carbide TiAlN

Item #: 5550263 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$50.70

/each
SAVE UP TO 5.07
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0472

Material Grade

Submicron

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7598

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.3150

Rake

Positive

Inscribed Circle (Decimal Inch)

0.7500

Insert Length (mm)

19.30

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

PP

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

3/4

Maximum Depth of Cut (mm)

8.00

Manufacturer Grade

IC807

Length Range (Decimal Inch)

0.7000 - 10.0000

Iso Code

ISO 13399

Product Overview
Turning Insert: CNMG 643-PP, Solid Carbide TiAlN & TiN Coated, 19.3 mm Long, 3/4" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond, Series Isoturn
