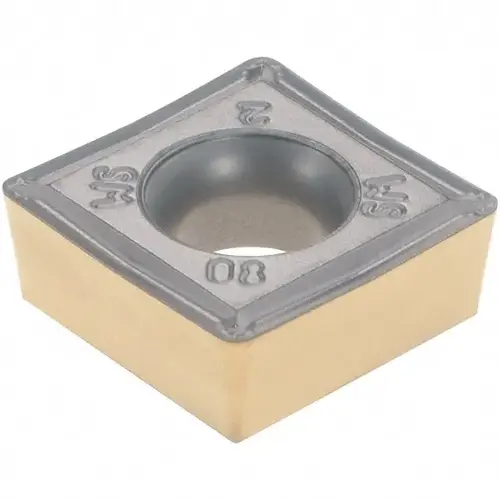

Iscar 5550409 Turning Insert: SCMT432SM IC807, Solid Carbide TiAlN

Item #: 5550409 by Iscar

See reviewsSee reviews
See reviews summary

$29.61

/each
SAVE UP TO 2.96
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

ISO 13399

Manufacturer Grade

IC807

Maximum Depth of Cut (mm)

4.00

Hole Diameter (Mm) ( - 0 Decimals)

5.50

Inscribed Circle (Inch)

1/2

Relief Angle

7

Hole Diameter (Decimal Inch)

0.2165

Tolerance Code

M

Insert Size Code

432

Insert Style

SCMT

Chip Breaker

SM

Insert Shape Code

S

Clearance Code

C

Insert Shape

Square

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5000

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.1575

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1874

Insert Holding Method

Screw

Width (mm - 2 Decimals)

12.70

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5000

Vendor Drop Ship

N

Primary Workpiece Material Code

H

Material Grade

Submicron

Corner Radius (Decimal Inch)

0.0315

Coating/Finish

TiAlN

Coating Process

PVD

Series

Isoturn

Insert Material

Solid Carbide

Included Angle

90.0

Standards

ISO 13399

Product Overview
Turning Insert: SCMT432SM IC807, Solid Carbide TiAlN & TiN Coated, 1/2" Inscribed Circle, 1/32" Corner Radius, 90 degree Square, Series Isoturn
