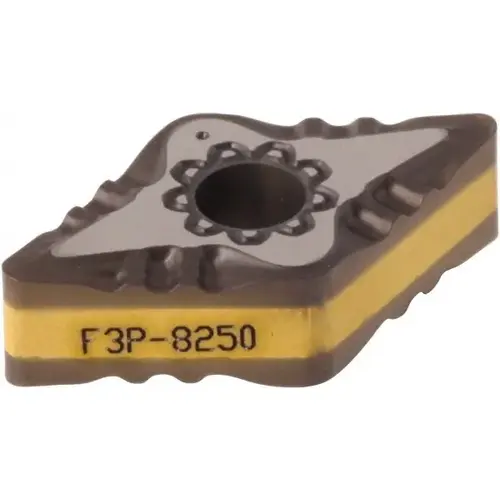

Iscar 5560579 Turning Insert: DNMG 332-F3P IC8250, Solid Carbide TiCN

Item #: 5560579 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$29.21

/each
SAVE UP TO 2.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 227 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

55.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.4580

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1380

Rake

Positive

Secondary Workpiece Material

None

Single Or Double End

Double

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

11.63

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Full Radius

No

Insert Shape Code

D

Chip Breaker

F3P

Insert Style

DNMG

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

3.51

Manufacturer Grade

IC8250

Length Range (Decimal Inch)

0.4000 - 0.5000

Iso Code

DNMG 332-F3P

Product Overview
Turning Insert: DNMG 332-F3P IC8250, Solid Carbide TiCN, Al2O3 & TiN Coated, 11.63 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series Isoturn
