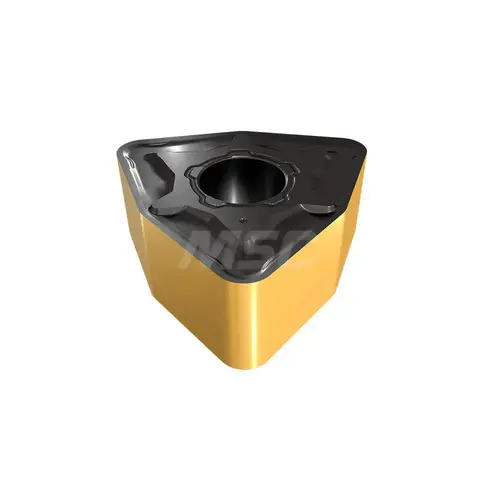

Iscar 5566739 Turning Insert: WNMG 333-M3M IC806, Solid Carbide TiAlN

Item #: 5566739 by Iscar

See reviewsSee reviews
See reviews summary

$20.21

/each
SAVE UP TO 2.02
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0469

Material Grade

Submicron

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.2570

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1380

Rake

Positive

Single Or Double End

Double

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

6.53

Corner Radius (Inch)

3/64

Insert Shape

Trigon

Clearance Code

N

Full Radius

No

Insert Shape Code

W

Chip Breaker

M3M

Insert Style

WNMG

Insert Size Code

333

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

3.51

Manufacturer Grade

IC806

Length Range (Decimal Inch)

0.0000 - 0.3000

Proprietary Coating Designation

SumoTec

Iso Code

WNMG 333-M3M

Product Overview
Turning Insert: WNMG 333-M3M IC806, Solid Carbide TiAlN Coated, 6.53 mm Long, 3/8" Inscribed Circle, 3/64" Corner Radius, 80 degree Trigon, Series Isoturn
