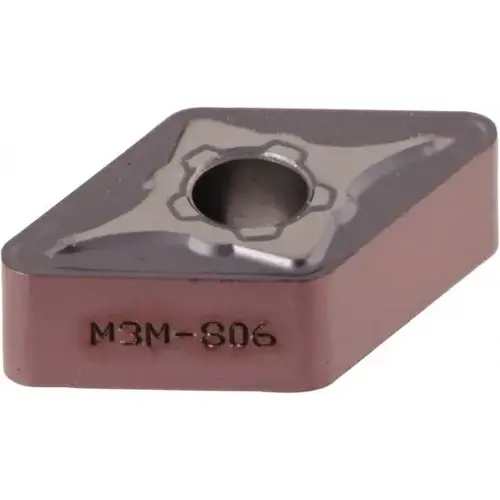

DNMG 333-M3M IC806 Carbide Turning Insert

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5566744Click To Copy DNMG 333-M3M IC806 Carbide Turning Insert

Item #: 5566744 by Iscar

See reviewsSee reviews
See reviews summary

$25.55

/each
SAVE UP TO 2.56

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0469

Material Grade

Submicron

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

Vendor Drop Ship

Y

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.4580

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1570

Rake

Positive

Single Or Double End

Double

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

11.63

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Full Radius

No

Insert Shape Code

D

Chip Breaker

M3M

Insert Style

DNMG

Insert Size Code

333

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

3.99

Manufacturer Grade

IC806

Length Range (Decimal Inch)

0.4000 - 0.5000

Proprietary Coating Designation

SumoTec

Standards

ISO 13399

Included Angle

55.0

Insert Material

Solid Carbide

Series

Isoturn

Iso Code

DNMG 333-M3M

Product Overview
DNMG 333-M3M IC806 Carbide Turning Insert TiAlN Finish, 11.63mm Long, 3/8" Inscribed Circle, 3/64" Corner Radius, 55 degree Diamond, Series Isoturn
