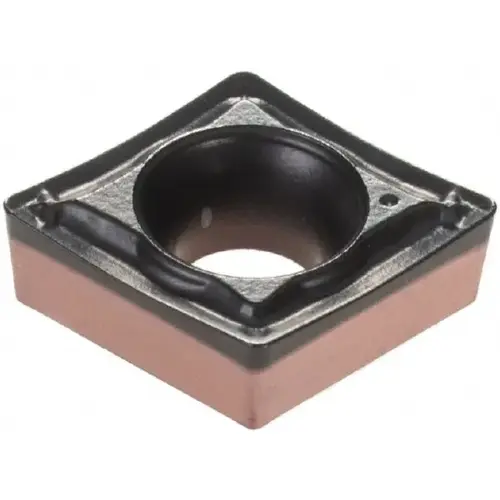

Iscar 5566933 Turning Insert: CCMT2-1-SM IC6025, Solid Carbide TiCN
Item #: 5566933 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ISO 13399
Included Angle
80.0
Insert Material
Solid Carbide
Series
Isoturn
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0160
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.2540
Insert Thickness (Decimal Inch)
0.0940
Insert Thickness (Inch)
3/32
Maximum Depth of Cut (Decimal Inch)
0.0980
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
None
Single Or Double End
Single
Inscribed Circle (Decimal Inch)
0.2500
Insert Length (mm)
6.45
Corner Radius (Inch)
1/64
Insert Shape
Diamond
Clearance Code
C
Full Radius
No
Insert Shape Code
C
Chip Breaker
SM
Insert Style
CCMT
Insert Size Code
2-1
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1100
Relief Angle
7
Inscribed Circle (Inch)
1/4
Multi-Use Application
Boring
Hole Diameter (Mm) ( - 0 Decimals)
2.79
Maximum Depth of Cut (mm)
2.49
Manufacturer Grade
IC6025
Length Range (Decimal Inch)
0.0000 - 0.3000
Iso Code
CCMT 2-1-SM
Product Overview
Turning Insert: CCMT2-1-SM IC6025, Solid Carbide TiCN, Al2O3 & TiN Coated, 6.45 mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Isoturn
