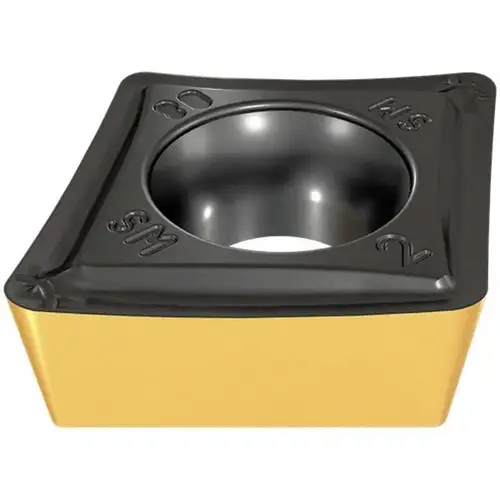

Iscar 5566961-XCP10 CCMT3-0-SM IC6025 Carbide Turning Insert - pack of 10
Item #: 5566961-XCP10 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ISO 13399
Included Angle
80.0
Insert Material
Solid Carbide
Series
Isoturn
Coating Process
CVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0080
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.3820
Insert Thickness (Decimal Inch)
0.1560
Insert Thickness (Inch)
5/32
Maximum Depth of Cut (Decimal Inch)
0.0980
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
None
Single Or Double End
Single
Inscribed Circle (Decimal Inch)
0.3750
Insert Length (mm)
9.70
Insert Shape
Diamond
Clearance Code
C
Full Radius
No
Insert Shape Code
C
Chip Breaker
SM
Insert Style
CCMT
Insert Size Code
3-0
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1730
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Boring
Hole Diameter (Mm) ( - 0 Decimals)
4.39
Maximum Depth of Cut (mm)
2.49
Manufacturer Grade
IC6025
Length Range (Decimal Inch)
0.3000 - 0.4000
Iso Code
CCMT 3-0-SM
Product Overview
CCMT3-0-SM IC6025 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 9.7mm Long, 3/8" Inscribed Circle, 0.008" Corner Radius, 5/32" Thick, 80 degree Diamond, Series Isoturn
