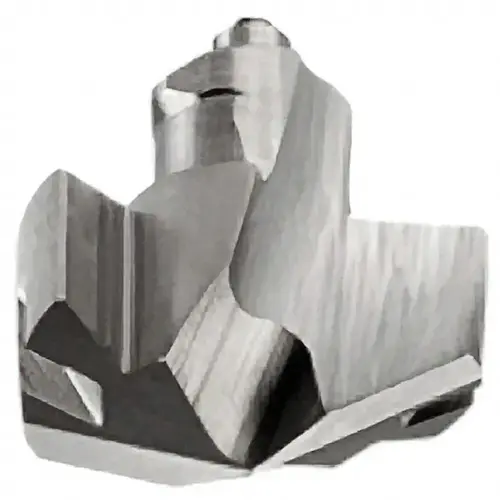

Iscar 5567142 ICM0709 IC907 Carbide Replaceable Tip Drill TiAlN

Item #: 5567142 by Iscar

See reviewsSee reviews
See reviews summary

$178.02

/each
SAVE UP TO 17.80
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Style

T-Land

Tip Material

Solid Carbide

Flute Type

Spiral

Applications

Drilling

Number of Flutes

2

Standards

ISO 13399

Series

ICM

Point Type

Thinned

Height (mm)

10.49

Spiral Type

Slow Spiral

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Height (Decimal Inch)

0.4130

Material Grade

Submicron

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Coating Classification

PVD

Drill Point Angle

140

Insert Holding Method

Twist

Secondary Workpiece Material

Steel

Web Thinning

Web Thinned

Cutting Diameter (Decimal Inch)

0.7090

Secondary Workpiece Material Code

P

ISO Number

ICM 180

Included Angle Degree

140

Manufacturer Grade

IC907

Functional Length (Decimal Inch)

0.3060

Insert Seat Size

18

Insert Geometry

M

Overall Length/Projection (Decimal Inch)

0.4130

Product Overview
ICM0709 IC907 Carbide Replaceable Tip Drill TiAlN/TiN Finish, 140 degree Included Angle, 18.01mm Diam, 10.49mm High, Series ICM
