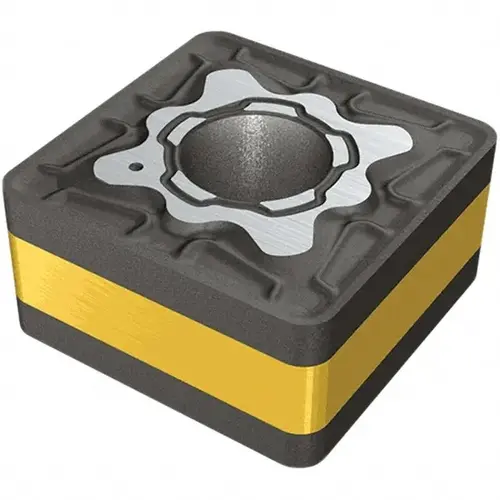

SNMG543-M3P IC8250 Carbide Turning Insert TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5567498 SNMG543-M3P IC8250 Carbide Turning Insert TiCN

Item #: 5567498 by Iscar

See reviewsSee reviews
See reviews summary

$43.60

/each
SAVE UP TO 4.36
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Insert Thickness

6.35

Included Angle

90.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0470

Manufacturers Catalog Number

5567498

Primary Workpiece Material

M

Primary Workpiece Material Code

M

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.6250

Width (Inch)

5/8

Width (mm - 2 Decimals)

15.88

Insert Thickness (Decimal Inch)

0.2500

Maximum Depth of Cut (Decimal Inch)

0.2950

Rake

Positive

Secondary Workpiece Material

None

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.6250

Insert Shape

Square

Clearance Code

N

Insert Shape Code

S

Chip Breaker

M3P

Insert Style

SNMG

Insert Size Code

543

Tolerance Code

M

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

7.50

Manufacturer Grade

IC8250

Inscribed Circle (mm)

15.88

Corner Radius (mm)

1.20

Iso Code

SNMG 543-M3P

Product Overview
SNMG543-M3P IC8250 Carbide Turning Insert TiCN/Al2O3/TiN Finish, RH, 15.88mm Inscribed Circle, 1.2mm Corner Radius, 6.35mm Thick, 90 degree Square
