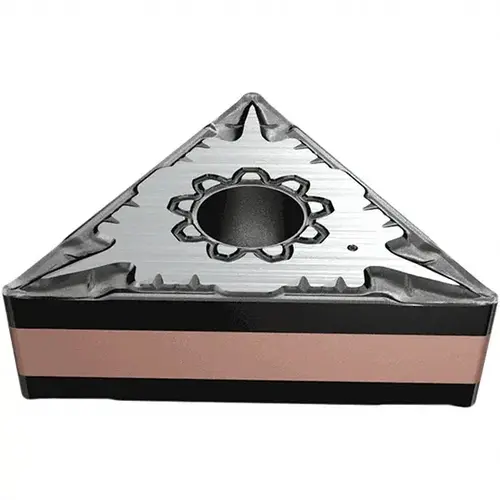

Iscar 5567840 TNMG331-F3M IC6025 Carbide Turning Insert TiCN
Item #: 5567840 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Insert Material
Carbide
Insert Thickness (Decimal Inch)
0.1874
Side Clearance
Negative
Vendor Drop Ship
N
Maximum Depth of Cut (Decimal Inch)
0.0591
ISO Insert Code
TNMG160404
Maximum Depth of Cut (mm)
1.50
Iso Code
ISO 13399
Grade Characteristics
Stainless Steel (M) - High Wear-Resistance to High Toughness
Relief Angle
0
Clearance Code
N
Rake
Positive
ANSI Insert Code
TNMG331
Insert Length (Decimal Inch)
0.6496
Insert Holding Method
Clamp
Coating/Finish
TiCN
UNSPSC Code
23242105
Corner Radius (Inch)
1/64
Insert Style
TNMG
Manufacturers Catalog Number
TNMG 160404-F3M
ANSI Size Code
331
Manufacturer Grade
IC6025
Inscribed Circle (Inch)
3/8
Standards
ISO 13399
Inscribed Circle (Decimal Inch)
0.3748
Insert Length (mm)
16.50
Coating Process
CVD
Primary Workpiece Material
Stainless Steel
Insert Shape Code
T
Corner Radius (Decimal Inch)
0.0157
Insert Thickness (Inch)
3/16
Chip Breaker
F3M
Length Range (Decimal Inch)
0.6000 - 0.6500
Multi-use Tool
No
Tolerance Code
M
ISO Size Code
160404
Insert Size Code
331
Included Angle
60
Series
Isoturn
Insert Shape
T - Triangle
Chip Breaker Operation
Finishing
Primary Workpiece Material Code
M
Product Overview
TNMG331-F3M IC6025 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 16.5mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series Isoturn
