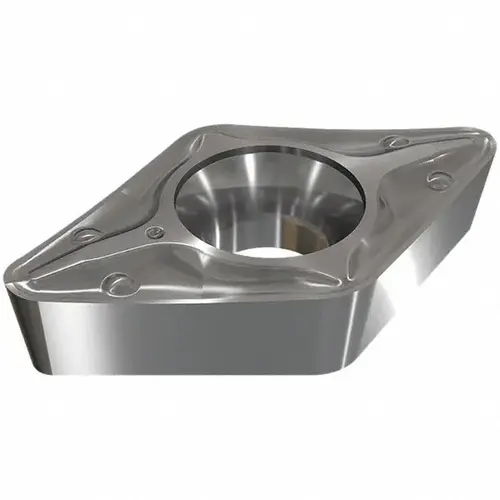

Iscar 5568609 Turning Insert: DCMT2-1-PF IC830, Solid Carbide TiAlN/AlTiN/TiN

Item #: 5568609 by Iscar

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$28.88

/each
SAVE UP TO 2.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 44 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Insert Thickness

2.38

Included Angle

55.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN/AlTiN/TiN

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

5568609

Primary Workpiece Material

M

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Insert Length (Decimal Inch)

0.3030

Insert Thickness (Decimal Inch)

0.0940

Maximum Depth of Cut (Decimal Inch)

0.1380

Rake

Positive

Secondary Workpiece Material

None

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

7.70

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

D

Chip Breaker

PF

Insert Style

DCMT

Insert Size Code

2-1

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1100

Relief Angle

7

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

3.50

Manufacturer Grade

IC830

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.40

Proprietary Coating Designation

SumoTec

Iso Code

DCMT 2-1-PF

Product Overview
Turning Insert: DCMT2-1-PF IC830, Solid Carbide TiAlN, AlTiN & TiN Coated, Right Hand, 7.7 mm Long, 6.35 mm Inscribed Circle, 0.4 mm Corner Radius, 55 degree Diamond, Series Isoturn
