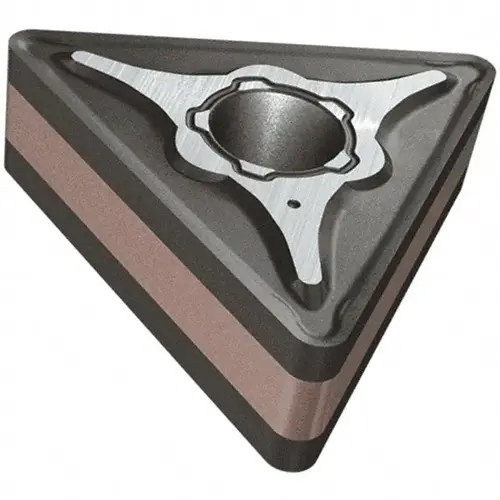

Turning Insert: TNMG432-M3M IC807, Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5569406-XCP10 Turning Insert: TNMG432-M3M IC807, Carbide - pack of 10

Item #: 5569406-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$280.18

/package
SAVE UP TO 28.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Insert Thickness

4.76

Included Angle

60

Insert Material

Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0310

Manufacturers Catalog Number

5569406

Primary Workpiece Material Code

H

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Length (Decimal Inch)

0.8660

Insert Thickness (Decimal Inch)

0.1870

Maximum Depth of Cut (Decimal Inch)

0.1970

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

22.00

Insert Shape

Triangle

Clearance Code

N

Insert Shape Code

T

Chip Breaker

M3M

Insert Style

TNMG

Insert Size Code

432

Tolerance Code

M

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Maximum Depth of Cut (mm)

5.00

Manufacturer Grade

IC807

Length Range (Decimal Inch)

0.7000 - 10.0000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.80

Proprietary Coating Designation

SumoTec

Iso Code

TNMG 432-M3M

Product Overview
Turning Insert: TNMG432-M3M IC807, Carbide TiAlN & TiN Coated, Right Hand, 22.00 mm Long, 12.70 mm Inscribed Circle, 0.80 mm Corner Radius, 60 deg Triangle, Series Isoturn
