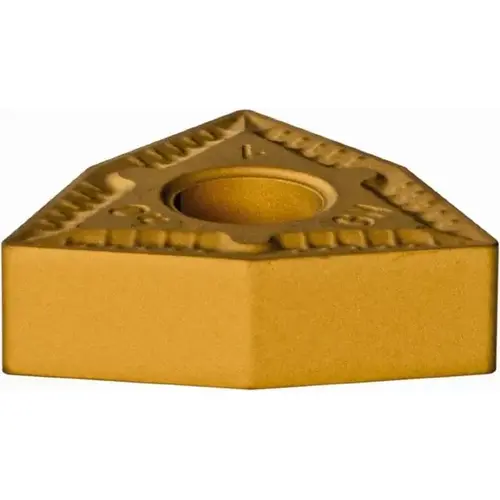

Turning Insert: WNMG 431-GN IC9250, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5591986-XCP10 Turning Insert: WNMG 431-GN IC9250, Solid Carbide - pack of 10

Item #: 5591986-XCP10 by Iscar

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

WNMG 431-GN

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3430

Insert Thickness (Decimal Inch)

0.1870

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1770

Multi-use Tool

Yes

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

8.71

Corner Radius (Inch)

1/64

Insert Shape

W - Trigon 80-Deg

Clearance Code

N

Insert Shape Code

W

Chip Breaker

GN

Insert Style

WNMG

Insert Size Code

431

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Boring

Maximum Depth of Cut (mm)

4.50

Chip Breaker Operation

Roughing

Manufacturer Grade

IC9250

ISO Size Code

080404

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

431

ISO Insert Code

WNMG080404

Iso Code

WNMG 431-GN

ANSI Insert Code

WNMG431

Product Overview
Turning Insert: WNMG 431-GN IC9250, Solid Carbide TiCN & Al2O3 Coated, 8.71 mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Trigon, Series Isoturn
