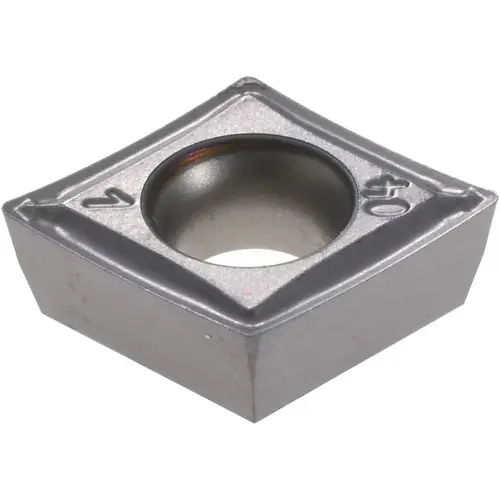

Turning Insert: INS CPGT 3-1 SM, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5592532 Turning Insert: INS CPGT 3-1 SM, Solid Carbide TiAlN

Item #: 5592532 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$38.35

/each
SAVE UP TO 3.83
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 95 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80

Insert Material

Carbide

Series

Isoturn

Side Clearance

Positive

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Material Grade

Submicron

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3740

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.1378

Rake

Positive

Inscribed Circle (Decimal Inch)

0.3748

Insert Length (mm)

9.50

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

P

Insert Shape Code

C

Chip Breaker

SM

Insert Style

CPGT

Insert Size Code

3-1

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

11

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

3.50

Chip Breaker Operation

Finishing

Manufacturer Grade

IC907

ISO Size Code

09T304

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.3000 - 0.4000

ANSI Size Code

3-1

ISO Insert Code

CPGT09T304

Iso Code

ISO 13399

ANSI Insert Code

CPGT3-1

Product Overview
Turning Insert: INS CPGT 3-1 SM, Solid Carbide TiAlN & TiN Coated, 9.5 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Isoturn
