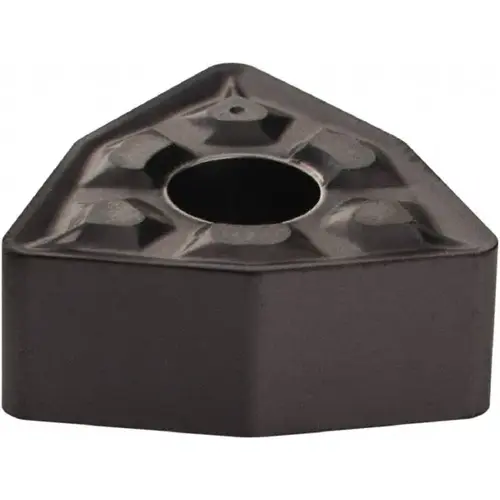

Iscar 5594751 Turning Insert: WNMG 332-TF IC907, Solid Carbide TiAlN

Item #: 5594751 by Iscar

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$19.81

/each
SAVE UP TO 1.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 225 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Material Grade

C7

Primary Workpiece Material

H

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.2567

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1181

Rake

Positive

Inscribed Circle (Decimal Inch)

0.3748

Insert Length (mm)

6.52

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Insert Shape Code

W

Chip Breaker

TF

Insert Style

WNMG

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Maximum Depth of Cut (mm)

3.00

Manufacturer Grade

IC907

Length Range (Decimal Inch)

0.0000 - 0.3000

Iso Code

ISO 13399

Product Overview
Turning Insert: WNMG 332-TF IC907, Solid Carbide TiAlN & TiN Coated, 6.52 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series Isoturn
