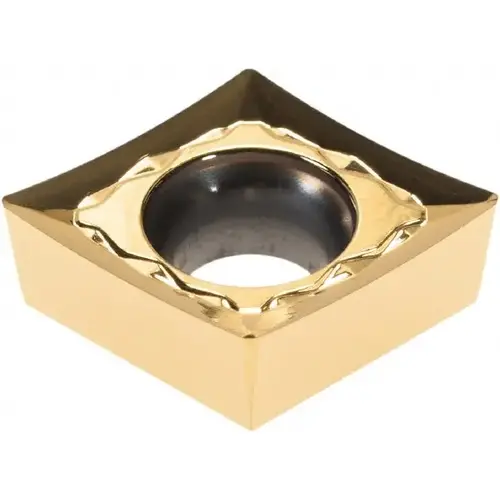

Turning Insert: CCGT 3-1-AS IC520, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5598658-XCP10 Turning Insert: CCGT 3-1-AS IC520, Solid Carbide - pack of 10

Item #: 5598658-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$351.56

/package
SAVE UP TO 35.16
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Solid Carbide

Series

Isoturn

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Primary Workpiece Material

Universal

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3819

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Maximum Depth of Cut (Decimal Inch)

0.0984

Rake

Positive

Inscribed Circle (Decimal Inch)

0.3748

Insert Length (mm)

9.70

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

C

Insert Shape Code

C

Chip Breaker

AS

Insert Style

CCGT

Insert Size Code

3-1

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

2.50

Manufacturer Grade

IC520

Length Range (Decimal Inch)

0.3000 - 0.4000

Iso Code

ISO 13399

Product Overview
Turning Insert: CCGT 3-1-AS IC520, Solid Carbide TiCN & TiN Coated, 9.7 mm Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series Isoturn
