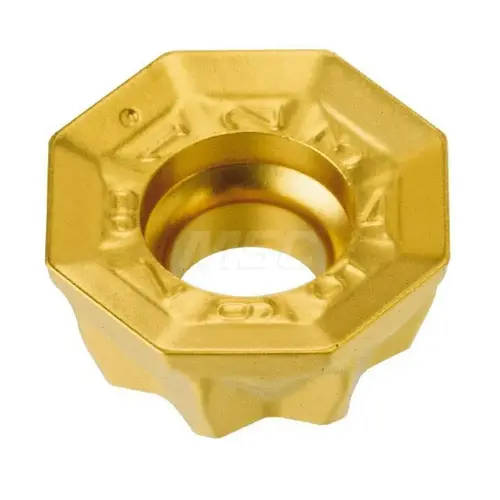

Iscar 5602126 Milling Insert: O45MT 050505-RM, IC910, Solid Carbide AlTiN
Item #: 5602126 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Material Application
Steel
ANSI Code
O45MT 050505-RM IC910
Number of Cutting Edges
8
Standards
ANSI
Insert Material
Solid Carbide
Series
CHAMMILL
Coating Process
PVD
Coating/Finish
AlTiN
Corner Radius (Decimal Inch)
0.0197
Length (Decimal Inch - 4 Decimals)
0.4540
Manufacturers Catalog Number
O45MT 050505-RM IC910
Material Grade
C2
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1970
Vendor Drop Ship
Y
Width (Decimal Inch - 4 Decimals)
0.4543
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1300
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.4543
Insert Shape
Octagon
Chip Breaker
RM
Insert Style
O45MT
Insert Size Code
050505
Included Angle Degree
135
Cutting Edge Effective Length (Decimal Inch)
0.1300
Maximum Depth of Cut (mm)
3.30
Manufacturer Grade
IC910
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Single
Cutter Series Compatibility
FDN-CM
Length Range (Decimal Inch)
0.4500 to 0.5000
Thickness Range (Decimal Inch)
0.1850 to 0.2000
Corner Radius (mm)
0.50
Iso Code
O45MT 050505-RM
Product Overview
Milling Insert: O45MT 050505-RM, IC910, Solid Carbide Coated, 0.1969" Thick
