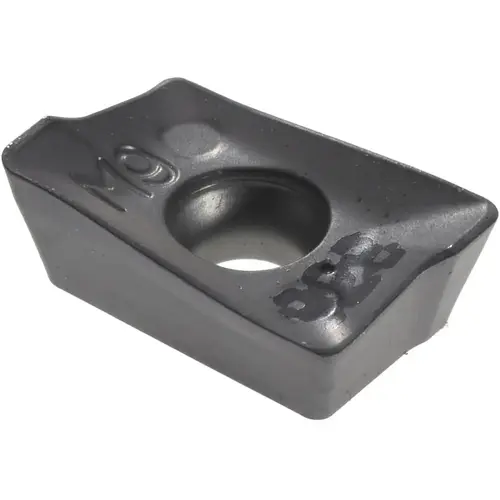

Iscar 5602490 Milling Insert: HM90 APKT 1003PDR, IC928, Solid Carbide TiAlN
Item #: 5602490 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
HM90 APKT 1003PDR
Corner Radius (mm)
0.80
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Length Range (Decimal Inch)
0.4500 to 0.5000
Cutter Series Compatibility
HM90-10
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.2500 to 0.3000
Manufacturer Grade
IC928
Maximum Depth of Cut (mm)
8.00
Cutting Edge Effective Length (Decimal Inch)
0.4040
Inscribed Circle (Inch)
17/64
Included Angle Degree
85
Relief Angle
11.00
Insert Size Code
1003
Insert Style
APKT
Secondary Workpiece Material Code
S
Chip Breaker
PDR
Insert Shape
Parallelogram
Corner Radius (Inch)
1/32
Inscribed Circle (Decimal Inch)
0.2660
Insert Hand
Right Hand
Rake
Positive
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.3860
Insert Holding Method
Screw
Coating Classification
PVD
Width (Inch)
17/64
Width (Decimal Inch - 4 Decimals)
0.2660
Vendor Drop Ship
N
UNSPSC Code
23291601
Thickness (Decimal Inch - 4 Decimals)
0.1390
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
C1
Manufacturers Catalog Number
HM90 APKT 1003PDR IC928
Length (Decimal Inch - 4 Decimals)
0.4510
Corner Radius (Decimal Inch)
0.0315
Coating/Finish
TiAlN
Coating Process
PVD
Series
HELI2000
Insert Material
Solid Carbide
Standards
ANSI
Number of Cutting Edges
2
ANSI Code
HM90 APKT 1003PDR IC928
Material Application
Steel
Cutting Edge Style
Honed
Product Overview
Milling Insert: HM90 APKT 1003PDR, IC928, Solid Carbide Coated, 0.139" Thick, 0.2661" Wide
