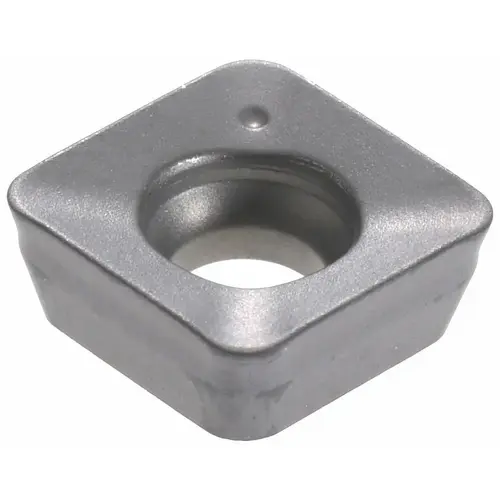

Iscar 5602569 Milling Insert: QOMT 060208TN-HQ, IC928, Solid Carbide TiAlN
Item #: 5602569 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
T-Land
Material Application
Steel
ANSI Code
QOMT 060208TN-HQ IC928
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
QUAD2000
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0315
Length (Decimal Inch - 4 Decimals)
0.2425
Manufacturers Catalog Number
QOMT 060208TN-HQ IC928
Material Grade
C1
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1010
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2425
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1570
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.2430
Corner Radius (Inch)
1/32
Insert Shape
Square
Chip Breaker
HQ
Secondary Workpiece Material Code
S
Insert Style
QOMT
Insert Size Code
060208
Included Angle Degree
90
Cutting Edge Effective Length (Decimal Inch)
0.2110
Manufacturer Grade
IC928
Inscribed Circle Range (Decimal Inch)
0.0000 to 0.2500
Single or Double Sided Insert
Single
Cutter Series Compatibility
ETS
Length Range (Decimal Inch)
0.0000 to 0.3200
Thickness Range (Decimal Inch)
0.1000 to 0.1250
Corner Radius (mm)
0.80
Iso Code
QOMT 060208TN-HQ
Product Overview
Milling Insert: QOMT 060208TN-HQ, IC928, Solid Carbide Coated, 0.1008" Thick
